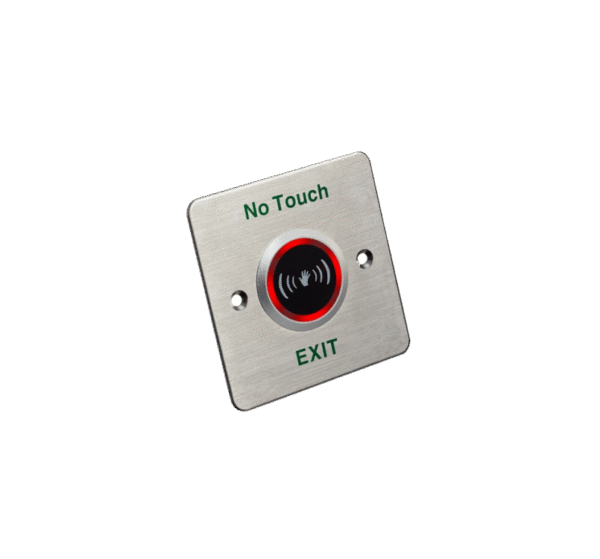

DS-K7P03

• Dimension (L × W × H): 86 mm × 86 mm × 25.7 mm (3.39″ × 3.39″ × 1.01″). • Input Voltage: 12 VDC. • Working Current: 40 mA (standby), 70 mA (working). • Current Rating: 1 A@30 VDC. • Output Contact: NO/NC/COM contact. • Panel: Stainless steel. • Aging Test: Already passed 1 million times aging test. • Suitable Doors: All kinds of narrow doorframes. • Working Temperature: -20 °C to 50 °C (-4 °F to 122 °F). • Working Humidity: 0 to 95% (relative humidity). • Detection Range (Adjustable): 40 mm to 120 mm (1.57 to 4.72″). • Time Delay: 1 to 25 s (adjustable) • LED Indicator Status: Green/red LED indicates working/standby. • Product Weight: 0.2 kg (0.44 lb)
